Fast Clip Bar Chairs

RRP $0.00
    • Description
    • Features
    • Documents


    Fast Clip-on Bar Chairs (FCB’s) are designed to make steel-fixing and traceability easier, with each chair identified by cover. FCBs are suitable for bar sizes from 4mm up to 20mm in diameter.

    Applications:

    • Precast and Tilt-Up.
    • Suspended decks.
    • Beams, walls and panels








    • Available in 20, 25, 30, 35, 40, 50, 60, 65 and 75mm cover.
    • Fast clip-on design.
    • Strong & stable design.
    • Australian Made. The ramsetreid® manufacturing facility at Chirnside Park (Victoria) is ISO 9001 certified.
    • Complies with AS/NZS 2425:2015.
    File Type File Description
    Reid_Plastic Chairs & Spacers Product Guide Product GuidesReid_Plastic Chairs & Spacers Catalogue_2023_NZ

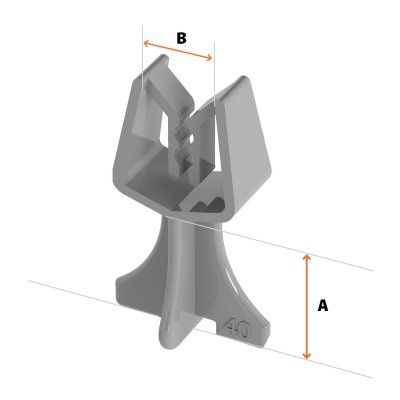

    Type B Bar Chair

    Type B Bar Chair:

    Part # Description AS2425 Load Rating
    (kg)    		 Pack qty
    (Each)    		 Pallet qty
    (pack)    		 Pallet qty
    (Each)    		 Pallet Height Pallet M3 A (mm) B
    (mm)
    Max bar size
    FCB20 Fast Clip Bar Chair 20mm 120 100 50 5,000 400 0.58 20 Up to 20mm
    FCB25 Fast Clip Bar Chair 25mm 120 100 50 5,000 400 0.58 25 Up to 20mm
    FCB30 Fast Clip Bar Chair 30mm 120 100 50 5,000 400 0.58 30 Up to 20mm
    FCB35 Fast Clip Bar Chair 35mm 120 100 50 5,000 400 0.58 35 Up to 20mm
    FCB40 Fast Clip Bar Chair 40mm 120 100 50 5,000 400 0.58 40 Up to 20mm
    FCB50 Fast Clip Bar Chair 50mm 120 100 50 5,000 400 0.58 50 Up to 20mm
    FCB60 Fast Clip Bar Chair 60mm 120 100 50 5,000 600 0.86 60 Up to 20mm
    FCB65 Fast Clip Bar Chair 65mm 120 100 50 5,000 600 0.86 65 Up to 20mm
    FCB75 Fast Clip Bar Chair 75mm 120 100 50 5,000 600 0.86 75 Up to 20mm
