Reid Panel Chairs are designed to support single layered mesh in precast elements, tilt-up panels and some suspended deck applications. With four strong stable legs the chair can support the mesh whilst walking over it without collapsing or tipping. Dimples located at the base of the legs ensure minimum exposure and the chair is coloured a consistent grey to match the concrete. The easy push-on clip mechanism allows the chair to swing into a vertical position as the mesh is lowered into the form. Suits all mesh sizes including Y12 bars.
Applications:
To learn more about Reid™ products, click here.
| File | Type | File Description |
|---|---|---|
| Reid_Plastic Chairs & Spacers Product Guide | Product Guides | Reid_Plastic Chairs & Spacers Catalogue_2023_NZ |
| Part # | Description | AS2425 Load Rating (kg) |
Pack qty (Each) |
Pallet qty (pack) |
Pallet qty (Each) |

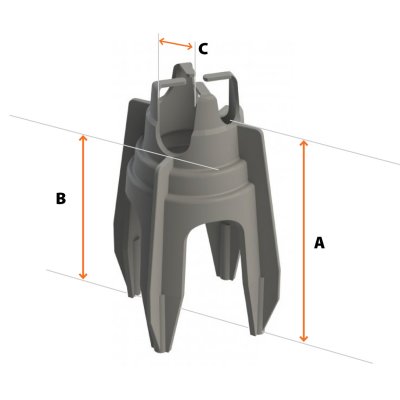

Pallet Height | Pallet M3 | A (mm) | B (mm) | C (mm) Max bar size |
| BCPANEL3040 | Bar Chair Panel 30/40mm | 120 | 100 | 50 | 5,000 | 600 | 0.86 | 40 | 30 | Up to 12mm |
| BCPANEL5060 | Bar Chair Panel 50/60mm | 120 | 100 | 50 | 5,000 | 1,200 | 1.73 | 60 | 50 | Up to 12mm |
| BCPANEL6575 | Bar Chair Panel 65/75mm | 200 | 100 | 50 | 5,000 | 1,200 | 1.73 | 75 | 65 | Up to 12mm |
| BCPANEL90100 | Bar Chair Panel 90/100mm | 200 | 100 | 40 | 4,000 | 4,000 | 5.76 | 100 | 90 | Up to 12mm |
