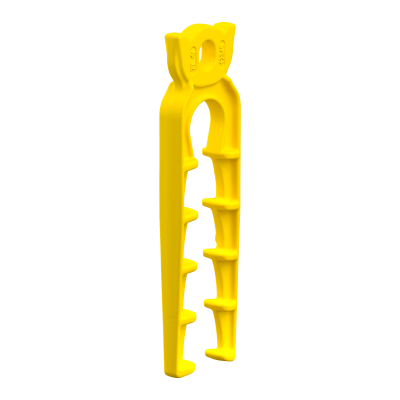

3Dx™ 7t Edge Lifting System

Designed and developed in conjunction with New Zealand’s leading precasters and crane operators, The new Reid™ 3DX™ Edge Lift Anchor has been validated and tested to perform to New Zealand conditions, using New Zealand materials. Faster, Smarter and Safer: 3DX 7t Edge lift anchors do not require any supplementary reinforcement to achieve full capacity; increasing panel set up speed and efficiency, reducing in-place cost whilst realising improved performance in both tension and shear. Reid™ AnchorShield™ coating mitigates galvanic reactions in precast panel production, which can lead to poor quality finishes and costly patching or remedial works. Reid™ 3DX™ 7t Edge Lift Anchors comply with NZ Good Practice Guidelines: safe work with precast concrete 2018

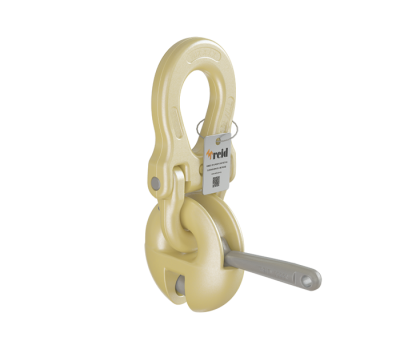

Short Description: Installation Guide for the Reid™ 3Dx™ Concrete Lifting system in New Zealand; 3Dx™ 7t WLL. Compliant to NZ Good Practice Guide to Safe Work With Precast Concrete 2018. Further technical information can be found here: Reids.co.nz Products used in this video are the Reid™ 3DX7N 7t WLL anchor & 3DX7NLC 7t WLL articulated clutch

Rigging, Lifting & Install Guidance Video to support Reid’s 3Dx 7t WLL lifting system. Compliant to AS3850:2015 (+A1 2019). Further technical information can be found here: reids.co.nz Products used in this video are the Reid™ 3DX7N 7t WLL anchor & 3DX7NLC 7t WLL articulated clutch
