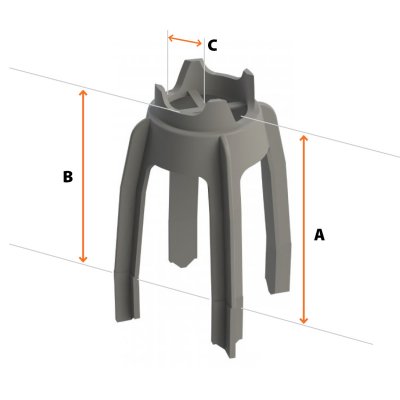

Top Deck Spacer

The Top Deck Spacer supports both top mesh and top reinforcing bars in suspended decks, thick precast elements and tilt-up panels where stability is critical. Load tested to over 300kg, the Top Deck Spacer leaves a minimal foot print and is supplied in a grey. Unlike wire alternatives, the Top Deck Spacer offers a combination of heights, will not rust, will not spread under normal construction loads and can still be handled in extreme heat. Top Deck Spacer Base (Image 2) is sold separately. The base adapts the Top Deck Spacer for use on slab-on-ground applications.

Applications:

• Top reinforcing mesh in Suspended Decks or Beams.
• Precast and Tilt-Up Panels.
• Suitable for use on heavy duty slab-on-ground applications - when used in conjunction with the base.
• All reo especially bars exceeding 16mm.

Top Deck Spacers feature a cross bar between the dual supports which provides for the wire-tying of reo, if required.

• All Top Deck Spacers provide combination/dual heights.
• Available sizes are 65/75, 90/100, 110/120, 130/140, 150/160, 170/180 and 190/200mm.
• Top Deck Spacer Base is sold separately.
• Australian Made. The ramsetreid® manufacturing facility at Chirnside Park (Victoria) is ISO 9001 certified.
• Complies with AS/NZS 2425:2015.
