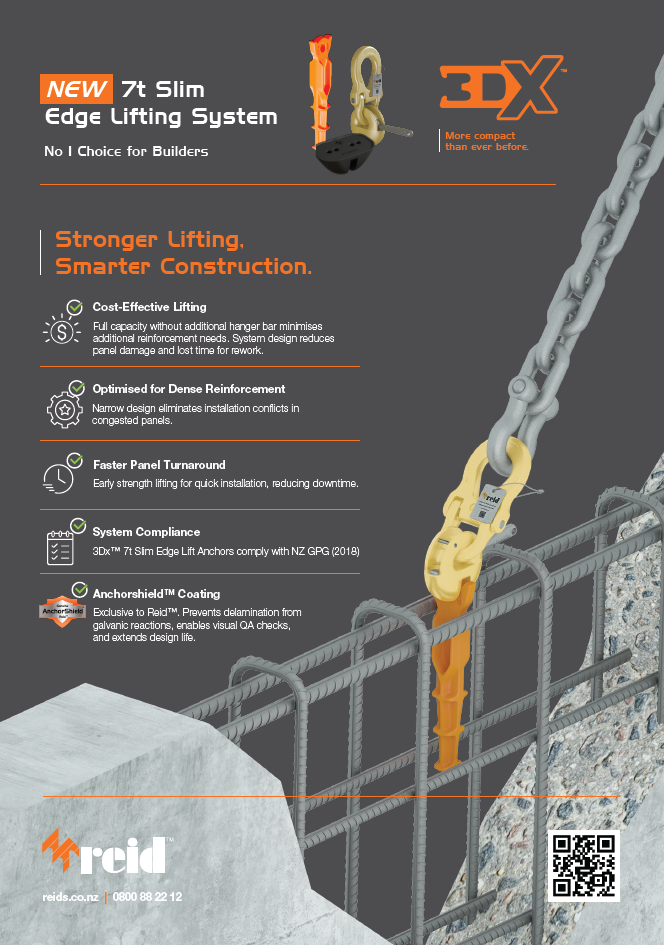

The Reid™ 3Dx™ 7t Slim Edge Lifting System is a complete, high-performance lifting solution designed specifically for the demands of New Zealand’s precast concrete industry in heavily congested or slim panels. Fully compliant with the NZ Good Practice Guidelines (2018) and tested using local materials and methods, the system ensures safe, efficient, and code-compliant lifting from factory to final installation.
At the heart of the system is the 3Dx™ 7t Slim Edge Lift Anchor (7SL3DX), forged with a patented I-beam profile that eliminates the need for shear bars or additional reinforcement. This innovation simplifies panel preparation and shortens production cycles, especially in early and low-strength concrete pours, while still achieving full load capacity.
Paired with the 3Dx™ Clutch (3DX7NLC) and Void Former (7ELARRF), the system is backwards compatible with existing Reid™ 7t hardware, ensuring a seamless transition and integration into existing precast workflows. The clutch is precision-engineered for safe, easy handling under load, while the reusable void former ensures accurate anchor placement and reliable stripping.
The anchor is hot-dip galvanised to AS/NZS 4680 and protected by our exclusive AnchorShield™ epoxy coating, which resists galvanic reaction and offers a distinct orange finish for quick visual QA checks.
- Compact – Designed for heavily congested or slim panels.
- Patented I-Beam Anchor Design – Engineered to eliminate the need for shear bars or additional reinforcement.
- Backwards-Compatible Components – Works seamlessly with existing 7t Reid™ clutches and void formers.
- Hot-Dip Galvanised Anchor – Coated to AS/NZS 4680 standards for long-term corrosion resistance.
- AnchorShield™ Epoxy Coating – Prevents galvanic reaction during precast production and improves finish quality.
- High-Visibility Orange Coating – Aids fast and accurate visual quality assurance checks.
- Full System Integration – Includes the 3Dx™ clutch and void former, optimised for safe and efficient lifting.
- Tested with NZ Materials – Proven performance in concrete reinforced with NZ 500E bar.
- NZ GPG 2018 & NZ Building Code Compliant – Meets relevant clauses including B2 Durability and lifting safety.
