Reid™ 3Dx™ Edge Lifting System

RRP $0.00
    • Description
    • Features
    • Documents
    • Digital Downloads
    • Videos

    NEW From Reid™

    Designed and developed in conjunction with New Zealand’s leading precasters and crane operators,  The new Reid™ 3Dx™ Edge Lift Anchor has been validated and tested to perform to New Zealand conditions, using New Zealand materials.


    Faster, Smarter and Safer: 3Dx™ 7t Edge lift anchors do not require any supplementary reinforcement to achieve full capacity; increasing panel set up speed and efficiency, reducing in-place cost whilst realising improved performance in both tension and shear.

    Reid™ AnchorShield™ coating mitigates galvanic reactions in precast panel production, which can lead to poor quality finishes and costly patching or remedial works.  Reid™ 3Dx™ 7t Edge Lift Anchors comply with NZ Good Practice Guidelines: safe work with precast concrete 2018
    • Forged I-Beam design removes the need for shear bars & increases bearing area vs 7HPAWFP.
    • Current 7ELARRF voids & 7ELALE clutches are backwards compatible.
    • Hot dip galvanised to AS/NZS 4680.
    • AnchorShield™: Epoxy coating mitigates galvanic reactions in precast panel production, which can lead to poor quality finishes.
    • AnchorShield™ Yellow colour allows for easy visual QA checks.
    • Simple & Easy to use, no extra reinforcement or difficult install methodology.
    • Validated & tested to NZ conditions, using NZ materials.
    File Type File Description
    Reid™ SwiftLift™ Edgelift Clutches_CD_NZ_2021 Compliance DocumentsReid SwiftLift™ Edgelift Clutches, from 1.3t to 32t WLL comply withNZ Good Practice Guide: Safe Work with Precast Concrete: 2018
    Reid Lifting Systems Compatibility Guide Installation GuidesPlease refer to the relevant Compliance Document for further information.
    Reid 3DX Edge Lift Anchor 3DX7N GPG Compliance Doc NZ Compliance DocumentsReid 3DX Edge Lift Anchor 3DX7N comply with NZ Good Practice Guide: Safe Work with Precast Concrete: 2018
    Reid Lifting Anchors Installation Guide Installation GuidesReid Lifting Anchors Installation Guide_NZ
    File Type File Description
    Reid 3Dx 7t Edge Lifting System BIM Files Digital DownloadsReid 3Dx 7t Edge Lifting System BIM Files
    3Dx™ 7t Edge Lift System

    Designed and developed in conjunction with New Zealand’s leading precasters and crane operators, The new Reid™ 3DX™ Edge Lift Anchor has been validated and tested to perform to New Zealand conditions, using New Zealand materials. Faster, Smarter and Safer: 3DX 7t Edge lift anchors do not require any supplementary reinforcement to achieve full capacity; increasing panel set up speed and efficiency, reducing in-place cost whilst realising improved performance in both tension and shear. Reid™ AnchorShield™ coating mitigates galvanic reactions in precast panel production, which can lead to poor quality finishes and costly patching or remedial works. Reid™ 3DX™ 7t Edge Lift Anchors comply with NZ Good Practice Guidelines: safe work with precast concrete 2018

    3Dx™ 7t Edge Lift Anchor NZ Install (3DX7N)

    Short Description: Installation Guide for the Reid™ 3Dx™ Concrete Lifting system in New Zealand; 3Dx™ 7t WLL. Compliant to NZ Good Practice Guide to Safe Work With Precast Concrete 2018. Further technical information can be found here: Reids.co.nz Products used in this video are the Reid™ 3DX7N 7t WLL anchor & 3DX7NLC 7t WLL articulated clutch

    3Dx™ 7t Edge Lift System Rigging & Lifting Methodology NZ

    Rigging, Lifting & Install Guidance Video to support Reid’s 3Dx 7t WLL lifting system. Compliant to AS3850:2015 (+A1 2019). Further technical information can be found here: reids.co.nz Products used in this video are the Reid™ 3DX7N 7t WLL anchor & 3DX7NLC 7t WLL articulated clutch

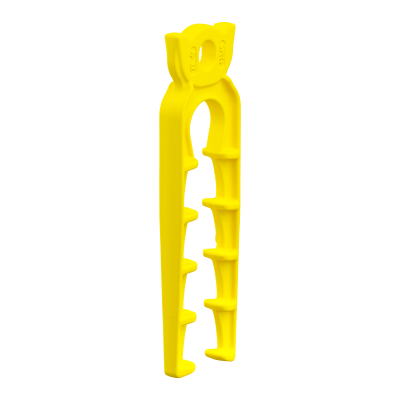

    7t 3Dx Edge Lifting Anchor

    7t 3Dx Edge Lifting Anchor:

    Part NumberDescriptionNZGPG2018 Compliant
    3DX7N7t 3Dx Edge Lifting AnchorYes
    7t 3Dx Edge Lifting Anchor Void Former

    7t 3Dx Edge Lifting Anchor Void Former:

    Part NumberDescriptionNZGPG2018 Compliant
    7ELARRF7t Edge Lifting Anchor Void FormerYes
    7t 3Dx Edge Lifting Clutches

    7t 3Dx Edge Lifting Clutches :

    Part NumberDescriptionNZGPG2018 Compliant
    3DXNLC3Dx 7t Edge Lifting ClutchYes
    7ELALE7t Edge Lifting ClutchYes

    Featured Video

    3Dx™ 7t Edge Lift Anchor NZ Install (3DX7N)

    Short Description: Installation Guide for the Reid™ 3Dx™ Concrete Lifting system in New Zealand; 3Dx™ 7t WLL. Compliant to NZ Good Practice Guide to Safe Work With Precast Concrete 2018. Further technical information can be found here: Reids.co.nz Products used in this video are the Reid™ 3DX7N 7t WLL anchor & 3DX7NLC 7t WLL articulated clutch

    View Video
    3Dx™ 7t Edge Lift Anchor NZ Install (3DX7N)

    Reid™ has been a trusted construction industry supplier for over 100 years.
