NEW ReidBar™ Optimised Couplers

RRP $0.00
    • Description
    • Features
    • Documents
    • Digital Downloads

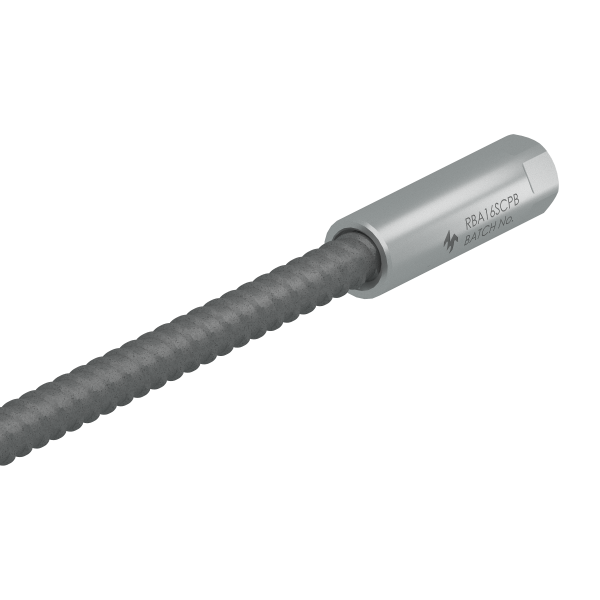

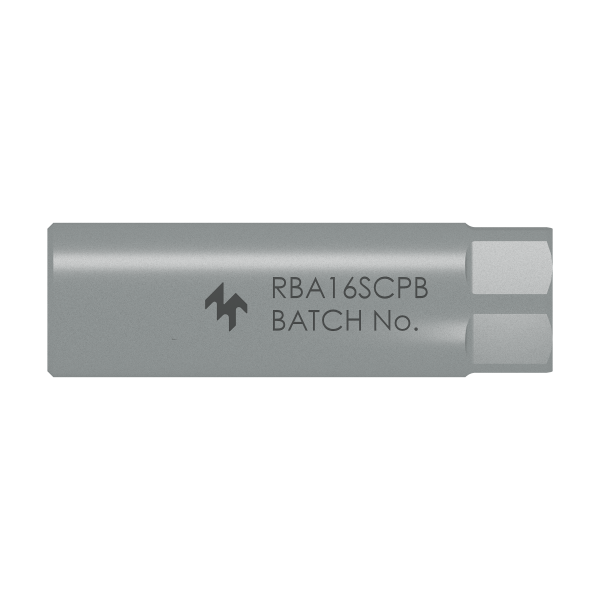

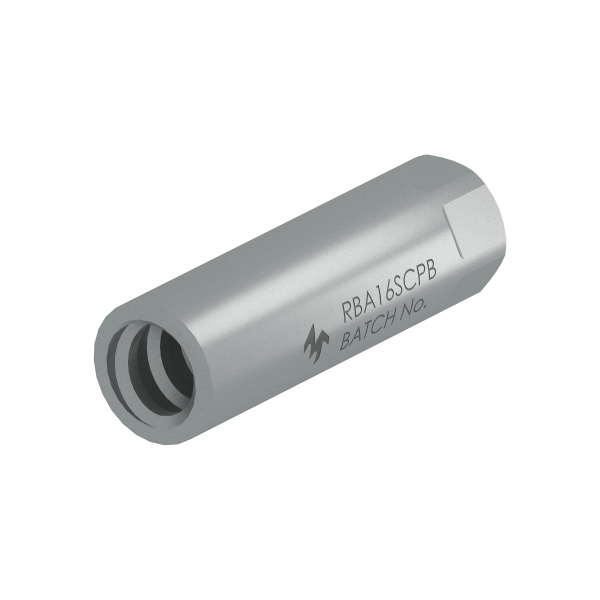

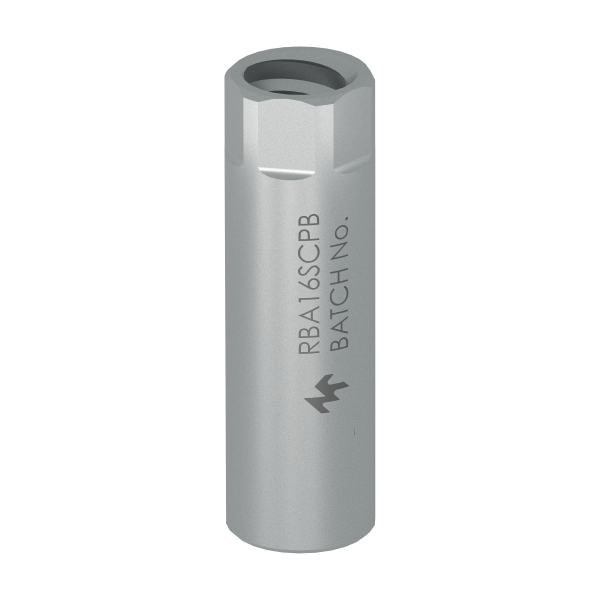

    The ReidBar™ Optimised Coupler is the most compact and installation‑friendly coupler ever developed in the ReidBar™ evolution. Engineered as a slim, short, high‑performance mechanical splice, its reduced body size significantly improves constructability - especially in congested reinforcement zones or thin precast elements. Despite its smaller footprint, it delivers full‑strength performance using ReidBar’s proven coarse‑thread system and the simple Cut & Connect method, supported by industry‑leading fatigue and seismic testing.

    Compliance confidence: Designed and tested to meet all NZS 3101, NZTA Bridge Manual, AS NZS 4671, and ISO 15835 requirements. Independently tested and engineer verified.

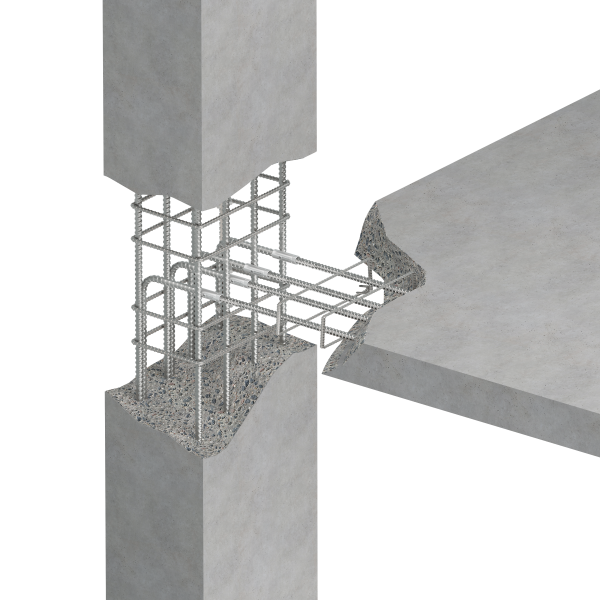

    Applications: These couplers are used in congested reinforcement layouts requiring compact connections, including precast wall panels, thin concrete sections, and prefabricated cages. They are well suited to seismic‑critical structures and are widely applied across major infrastructure such as bridges, transport systems, and large civil works, as well as high‑rise and commercial buildings.

    Most Compact ReidBar™ Coupler Design Yet
    • The latest-generation body geometry is slimmer and shorter, making installation easier in tight reinforcement layouts and improving concrete compaction around the connection point.
    FS12 Mechanical Splice
    • Independently certified to ISO 15835 for full strength, high‑cycle fatigue, and seismic S2 (violent low‑cycle) performance, outperforming basic competitor couplers that are not fatigue‑rated.
    Fatigue Tested & Proven
    • Passed high‑cycle fatigue testing — including 2,000,000 cycles at 500 MPa upper stress on 32mm assemblies — and completed all S2 seismic low‑cycle fatigue requirements, consistently achieving ductile bar failure outside the coupler.
    Cut & Connect Simplicity
    • No bar-end threading or complex steps. Just cut the bar square, inject EPCON™ C8 Xtrem™, thread, tighten, and go — ideal for fast and repeatable onsite assembly.
    Optimised Coarse Thread for Slip Control
    • Prevents cross-threading and supports reliable engagement in horizontal and vertical applications.
    Full Structural Capacity
    • Every size verified to exceed tensile requirements with ductile bar failure outside the coupler, proving the system does not govern failure.
    File Type File Description

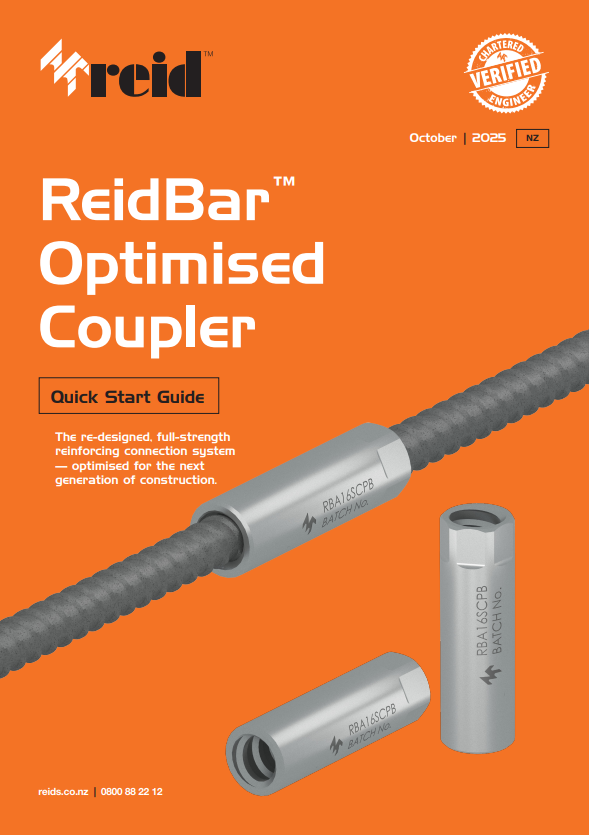

    ReidBar Optimised Coupler Product Guide NZ Product GuidesThe re-designed, full-strength reinforcing connection system - optimised for the next generation of construction.

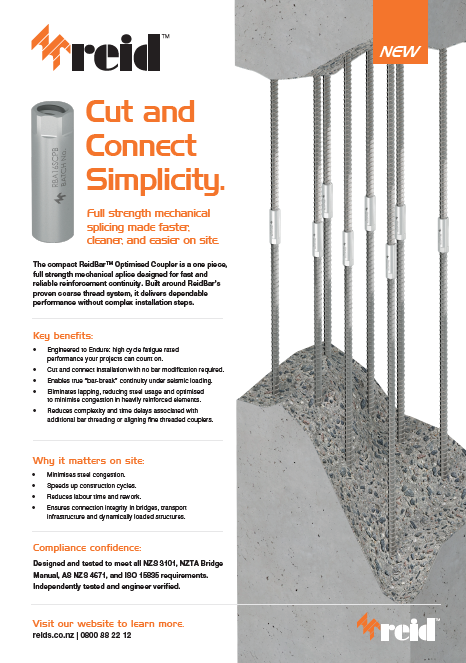

    ReidBar Optimised Coupler Product Guide Flyer Product BrochuresThe re-designed, full-strength reinforcing connection system — optimised for the next generation of construction.

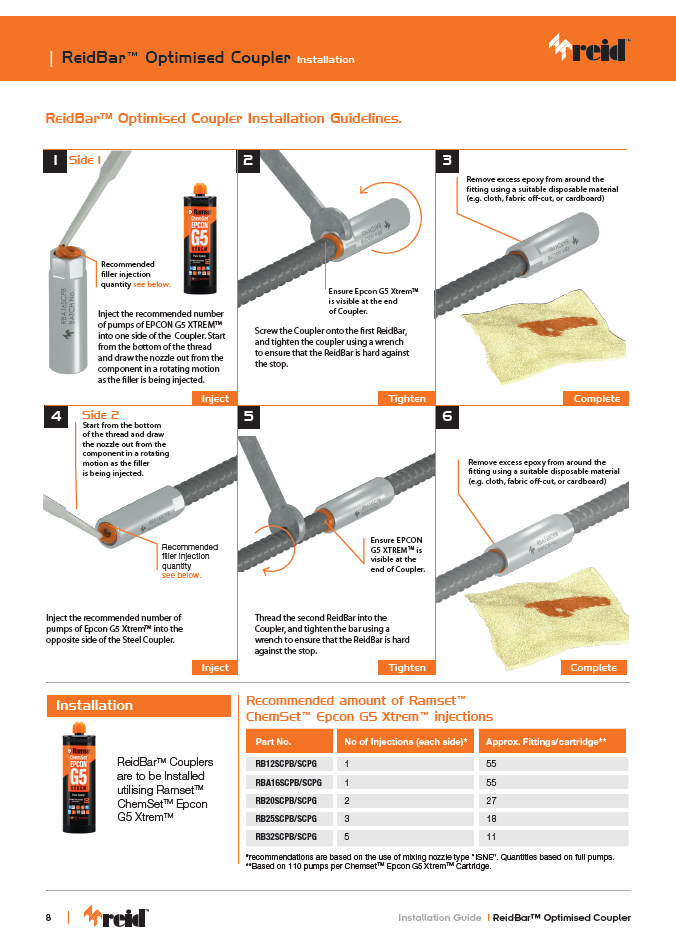

    ReidBar Optimised Coupler Product Guide Installation Guide Installation GuidesReidBar Optimised Coupler Installation procedure using Epcon G5 Xtrem.
    Reid Optimised Coupler RTA Document Technical Assessment DocumentsReid Optimised coupler RTA Document
    File Type File Description
    ReidBar™ Optimised Coupler – BIM Files Digital DownloadsA complete set of BIM resources for the ReidBar™ Optimised Coupler, including 2D drawings, 3D models, Revit families, IFC files, DWG files, OBJ files, and supporting documentation. These files are provided to support accurate modelling and seamless inte

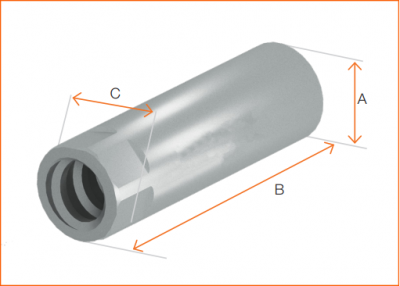

    ReidBar™ Optimised Couplers

    ReidBar™ Optimised Couplers:

    Part No. Description Finish Body Diameter
    (A) (mm)    		 Length
    (B) (mm)    		 Hex A/F
    (C) (mm)    		 Min Threaded
    Depth (mm)
    RB12SCPB 12mm Optimised ReidBar Coupler Black 22 94 20 39
    RB12SCPG 12mm Optimised ReidBar Coupler Galvanised 22 94 20 39
    RBA16SCPB 16mm Optimised ReidBar Coupler Black 26 110 24 45
    RBA16SCPG 16mm Optimised ReidBar Coupler Galvanised 26 110 24 45
    RB20SCPB 20mm Optimised ReidBar Coupler Black 32 141 29 60
    RB20SCPG 20mm Optimised ReidBar Coupler Galvanised 32 141 29 60
    RB25SCPB 25mm Optimised ReidBar Coupler Black 40 172 36 73
    RB25SCPG 25mm Optimised ReidBar Coupler Galvanised 40 172 36 73
    RB32SCPB 32mm Optimised ReidBar Coupler Black 52 184 46 79
    RB32SCPG 32mm Optimised ReidBar Coupler Galvanised 52 184 46 79
