Reid™ Hairpin Anchors

RRP $0.00
    • Description
    • Features
    • Documents

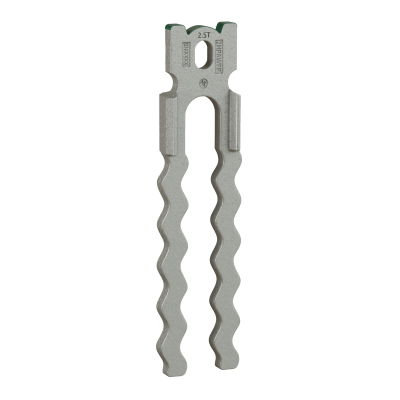

    The Reid Hairpin Anchor with feet eliminates the requirement of a shear bar and removes the risk of hanger bars being left out during installation.

    The HPAWF is available in two sizes, and is forged for added strength. Its thick, long hairpin legs provide secure lifting in both shear and tension applications, even in thin concrete panels (minimum panel thickness is 100mm). Hot dipped galvanised for corrosion protection, beneficial in thin panels where concrete cover is minimal.

    Features and Benefits:

    • Special feet forged onto the side of the anchor removes the requirement of installing shear bars.
    • Can be remote released as an added safety feature.
    • Forged for added strength and manufacturing accuracy.
    • Hot dipped galvanised for corrosion protection, beneficial in thin panels where concrete cover is minimal.
    • Designed for thin panels, minimum panel thickness is 100mm (2HPAWF).
    • Simple and easy installation.
    File Type File Description
    Reid™ Edge Lift Hairpin Anchors with Feet_CD_NZ_2021 Compliance DocumentsReid™ Edge Lift Hairpin Anchors with feet comply with NZ Good Practice Guidelines: safe work with precast concrete 2018
    Reid™ SwiftLift™ Edgelift Clutches_CD_NZ_2021 Compliance DocumentsReid SwiftLift™ Edgelift Clutches, from 1.3t to 32t WLL comply withNZ Good Practice Guide: Safe Work with Precast Concrete: 2018
    ramsetreid Precast Solutions NZ Product Guide Product GuidesThis document contains product codes and key data for the precast solutions product range.
    Reid NZ Lifting Systems Compatibility Guideline EducationalReid NZ Lifting Systems Compatibility Guideline. Reid™ SwiftLift™ Lifting Systems comply with NZ Good Practice Guide: Safe Work with Precast Concrete: 2018. Please refer to the relevant Compliance Document for further information regarding these syste
    Reid™ Lifting System Compatibility Safety Alert Safety Data SheetsReid™ Lifting System Compatibility Safety Alert. Reid Clutches are not designed to be used with other manufacturers’ lifting products, as there is no guarantee of compatibility.

    Reid™ Hairpin Anchors

    Reid™ Hairpin Anchors:

    Part #DescriptionLength (mm)
    2HPAWFP2.5 tonne264mm
    2HPAWFP7 tonne340mm
