    ReidBar Couplers provide versatility in structural design unmatched by alternative reinforcing coupler systems.

    ReidBar Couplers allow buildings to be constructed with continuous reinforcing throughout the length and breadth of concrete elements. Commonly utilised for wet joints and panel to panel applications.

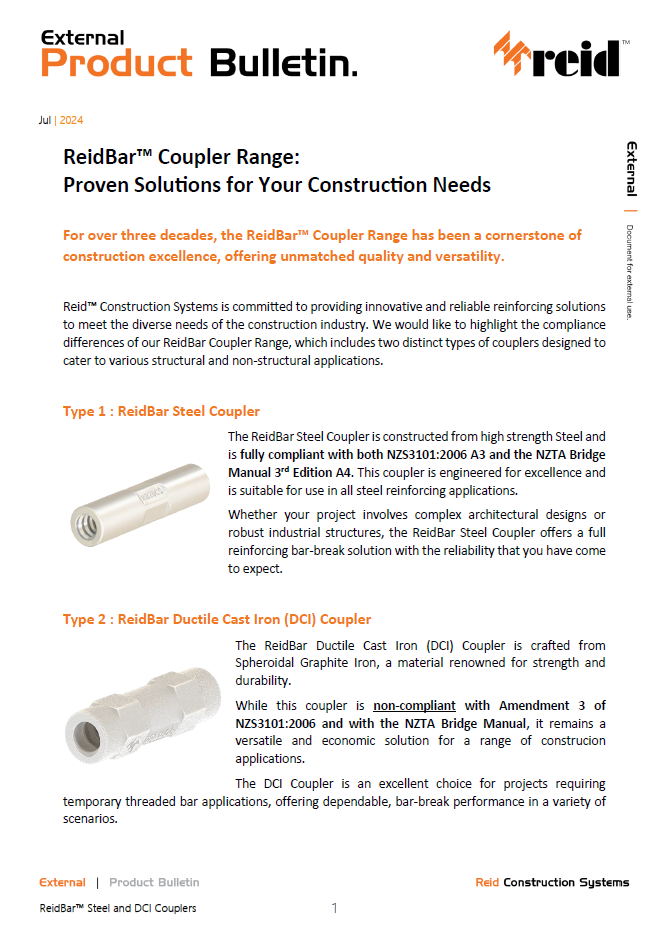

    Now also available in Steel, a ReidBar coupling solution that meets the requirements of NZS3101:2006 Amendment 3 is now available to the New Zealand market. Refer to the documents tab for more information.




    Features & Benefits:

    • Available in Cast SG Iron and Steel, in black and HDG finish. Refer to Documents section for full range.
    • Allow connections between ReidBar lengths, owing to the continuous ReidBar thread employed across the length of the reinforcing bar.
    • Coupling could be achieved anytime and anywhere without pre threading of reinforcing bar, hence reducing processing lead times and providing onsite flexibility.
    • The coarse thread nature allows the system to maintain its easy to install characteristics, as it is less prone to interference caused by construction dust and debris.
    • Efficient coupling removes the need for lapping, reducing wastage and congestion in heavily reinforced concrete pours.
    File Type File Description
    Reid Precast Connection Application Examples Installation GuidesThis document contains Connection Application Examples

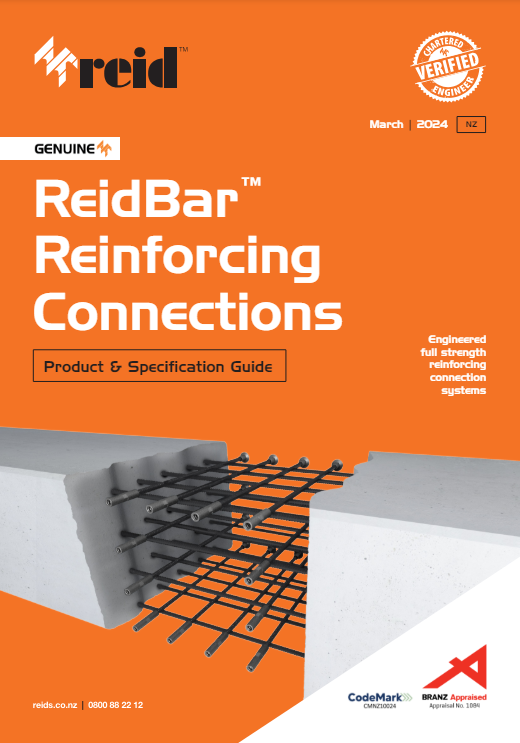

    ReidBar™ Reinforcing Connection Systems Product and Specification Guide Product GuidesThis document contains important Specification and Installation information for ReidBar™ Reinforcing Connection Systems
    Reid Precast Solutions NZ Product Guide Product GuidesThis document contains product codes and key data for the precast solutions product range.
    Reid Steel Coupler RTA Document Technical Assessment DocumentsThis Technical Assessment meets the testing requirements stipulated in clauses 8.7.5.2, 8.9.1.3, 8.6.11 of NZS 3101:2006 A3
    File Type File Description
    ReidBar Steel Couplers Layout DWG Digital DownloadsReidBar Steel Couplers Layout DWG
    ReidBar Steel Couplers DWG Digital DownloadsReidBar Steel Couplers DWG
    ReidBar Steel Couplers RFA Digital DownloadsReidBar Steel Couplers RFA
